Published April 24, 2017

People and Fall Detection with Walabot

A system for detecting up to 5 stationary people simultaneously and determining if someone has fallen.

AdvancedFull instructions provided3 hours4,483

Things used in this project

Hardware components

Walabot Creator

Story

Fall Detection

By performing some post signal processing on the data collected with Walabot (an 18-antenna array radar), I have developed a system for localizing up to 5 different stationary people simultaneously, and also detecting if someone has fallen.

Falls among the elderly population are the leading cause for injuries and hospitalizations. Fall detection has previous been approached through wearable technology and camera-based systems. However, both of these systems have major limitations since wearables can cause discomfort, while the camera-based systems compromise the privacy of the user, require a field-of-view and are costly to set up and maintain.

Walabot is the perfect alternative! It does not require a direct line-of-sight and can be programmed to only detect people, and not other objects such as furniture. Its ultra-wide band (UWB) technology is also very useful as it provides high-speed data transmission.

Signal Processing Overview

Walabot is a MIMO radar and the raw data that it returns represents the impulse response and thus, it provides us with a time-of-flight (TOF) profile of each scan. TOF is defined as the time it takes the transmitted wave to reach a reflector and then travel back to the receiver. With this information and the fact that these waves travel at the speed of light, we can calculate the round-trip distance. This round-trip distance localizes the person to an ellipse whose foci are the transmit and receiver antennas. This principle is the foundation used by my system for initially localizing people and then detecting a fall.

Here's a short video that briefly outlines the process of localizing people and detecting a fall:

The system uses two python scripts; one for collecting data and one for making ellipse heatmaps. The heatmaps are an essential part of signal processing because they use the raw signals obtained from Walabot to show areas with strong signal intensity, which indicate the presence of a person.

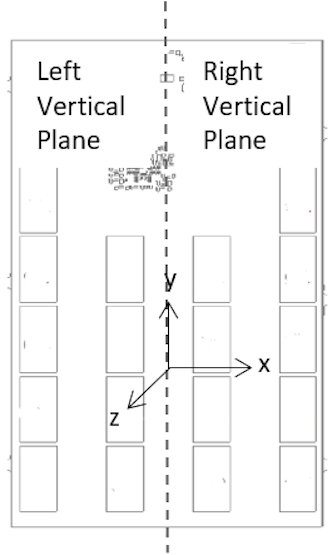

Vertical plane heatmaps represent the yz-plane, while the horizontal plane heatmaps represent the zx-plane. The intersection point of these two planes is determined to localize a person. A person would be located some z-distance from the Walabot and that z-vlaue would be the same in heatmpas for both planes. One of the vertical plane heatmaps is used to find this z-value. Afterwards, the corresponding x-value is found by using one of the horizontal plane heatmaps.

Step 1: Data Collection with Walabot

The python script 'DataCollection' is used to collect data. To ensure that background reflections from furniture do not clutter the obtained signals, an initial calibration is performed before people enter the room. The area in front of the Walabot should be clear of all moving objects or people when the calibration is performed. A message is displayed in the terminal once the calibration is complete.

Once calibration is complete, the data from each frame is written to a csv file named ‘raw_data’. The frame number is also displayed in the terminal. It is important to take note of two specific frame numbers: the first frame is where all people have been standing in the range for ~10s and the other one is when someone has fallen. The Walabot requires some time to stabilize the signals it receives from the people and therefore, the frame where all people are detected are usually 10s after people enter the range.

Step 2: Making the Heatmaps

Here, the python script 'Heatmap' is used for making the ellipse heatmaps. This script reads the data from the 'raw_data' csv file and hence, it should be in the same directory as this script. There are 4 parameters that need to be specified: i) the frame number for the stabilized signals, ii) the antenna pair, the iii) the upper limit of range and iv) the lower range limit. The range limit is set by the number of points to be used; each scan from Walabot provides 8192 data points for each frame, which corresponds to a distance of ~12m. Depending on how many data points are used, the range for heatmaps can be manipulated easily. Initially, the lower limit of the range should be set to 0; this is modified later when a section of the heatmap is required to be removed once a person is localized.

Since we will be comparing data from the horizontal and the vertical planes, we need to first make the heatmaps for these planes. In total, 9 heatmaps will be required; the antenna pairs that provide data for the horizontal plane are 1, 2, 9 25, and 26 and the antenna pairs for the vertical plane are 7, 14, 32, and 34. See the images below to see the location of the antenna pairs on the Walabot board.

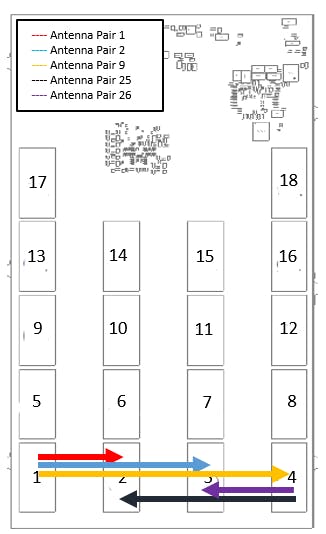

1 / 2 • Antenna pairs corresponding to the horizontal plane

Step 3: Choosing Optimal Heatmaps

i) Optimal Horizontal Plane Heatmap:

Examine the maximum signal intensity value of the signals by looking at the color-bar, and choose the heatmap of the antenna pair with the highest intensity value.

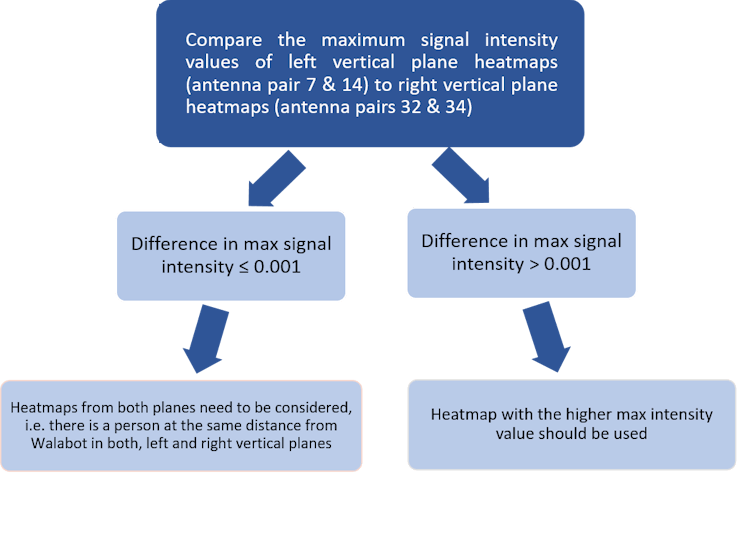

ii) Optimal Vertical Plane Heatmap:

To determine if a person is in the left vertical plane or in the right vertical plane, the intensity values for signal strengths are examined. The following flowchart outlines the steps for the two different cases.

Step 4: Intersection between Vertical and Horizontal Planes

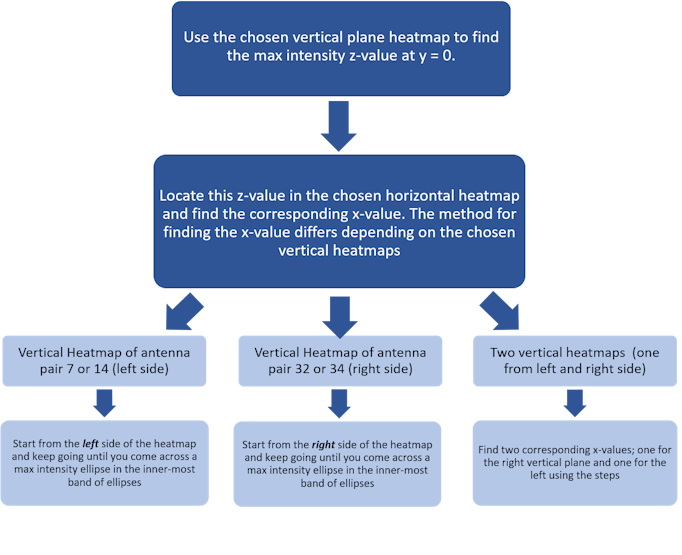

Now that we know which heatmaps to use, we can look at their intersection points to localize the first person. The flowchart given below organizes the steps for three possible cases.

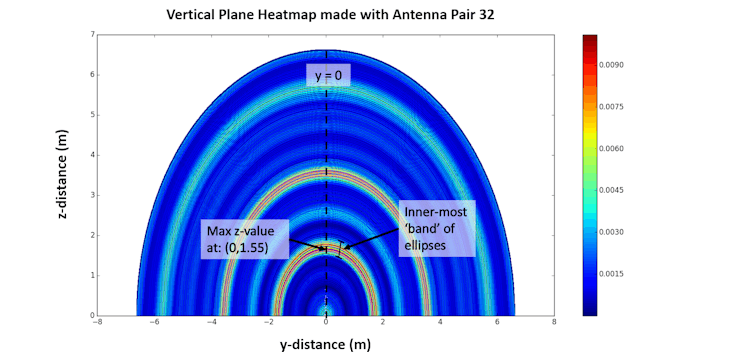

The heatmaps below show an example of how to find the max intensity z-value from the vertical plane and how to find its corresponding x-value in the horizontal plane. In this case, the optimal vertical plane was made with data from antenna pair 32, thus, the right side of the heatmap is considered when looking for the corresponding x-value.

1 / 3

Step 5: Localize Person

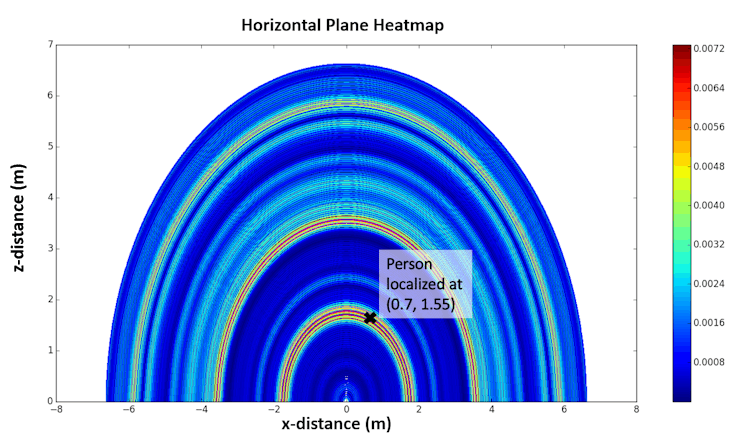

The person can now be localized using the z- and the x-values; be sure to record the signal intensity value of the person from the chosen horizontal plane.

Step 6: Remove Localized Person from Heatmap

One of the biggest challenges for localizing people is the 'Near-far Problem'. People at different distances from the radar have different intensities; thus, people farther away often don’t show up in the heatmap. To overcome this issue, the section of the heatmap corresponding to the person closest to Walabot should be removed, which can be done by updating the lower limit of the heatmap range:

An example of a heatmap before and after the first localized person is removed:

1 / 2 • Person closest to Walabot localized

Step 7: Localizing more than One Person

Repeat Steps 2-6 until all people in the range are localized and don't forget to keep track of every person's signal intensities. Note that in step 6, a section of the heatmap wil need to be removed every time a person is localized.

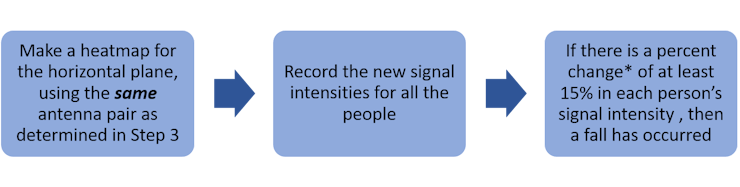

Step 8: Fall Detection

Walabot is able to detect the changes in signal intensities due to the occurrence of a fall and it usually does so ~2-3 frames after someone has fallen. Therefore, to detect a fall, the acquired signal intensity values for the localized people should be compared to the new data every 3 frames. Once again, a heatmap of the new frame is required to perform some signal analysis. The detailed steps are given below:

1 / 2

Code

# --------------------------------------DATA COLLECTION-------------------------------------------
# |   File: DataCollection                                                                       |
# |   Type: .py (python)                                                                         |
# |   Purpose: Subtracts an initially recorded background from newly collected data and saves it |
# |   into a csv file called 'raw_data'
# ------------------------------------------------------------------------------------------------


from __future__ import print_function
from sys import platform
from os import system
import WalabotAPI as wlbt
import matplotlib.pyplot as plt
from drawnow import drawnow
import numpy as np


# _______________________________________________________________________________________________________
#|                                            COLOR MATRIX                                               |
#| ______________________________________________________________________________________________________|

# The matrix with 40 different colors; this is to be used later when plotting data from the antenna
# pairs. THe size of this matrix is 40 because that correlates with the total number of available
# antenna pairs.
COLORS = [
"000000", "0000FF", "DC143C", "00FFFF", "008000", "0000FF", "ADD8E6", "F8F8FF", "F0FFF0", "6495ED",
"6A5ACD", "FAF0E6", "00008B", "B0E0E6", "2E8B57", "BDB76B", "FFFAFA", "A0522D", "0000CD", "4169E1",
"E0FFFF", "008000", "9370DB", "191970", "FFF8DC", "AFEEEE", "FFE4C4", "708090", "008B8B", "F0E68C",
"F5DEB3", "008080", "9932CC", "FA8072", "00BFFF", "663399", "8B0000", "4682B4", "DB7093", "778899"]


# _______________________________________________________________________________________________________
#|                                     INITIALIZING/CNNECTING WALABOT                                    |
#| ______________________________________________________________________________________________________|


# Load the python WalabotAPI into the program as 'wlbt' and initialize it
wlbt.Init()
wlbt.SetSettingsFolder()

# Establish a connection between the Walabot and the computer
wlbt.ConnectAny()

# Set sensor profile
wlbt.SetProfile(wlbt.PROF_SENSOR)

# Set filtering to none
wlbt.SetDynamicImageFilter(wlbt.FILTER_TYPE_NONE)


# ________________________________________________________________________________________________________
#|                                    GET ANTENNA PAIRS AND START WALABOT                                 |
#| _______________________________________________________________________________________________________|


# Get the list of antenna pairs that are available and store it in an array
pair = wlbt.GetAntennaPairs()

# Start the Walabot device
wlbt.Start()


# ________________________________________________________________________________________________________
#|                                              LIVE-UPDATING GRAPH                                       |
#| _______________________________________________________________________________________________________|

# 'ant' stores the number of antenna pairs to be used for data collection
ant = 40

# This command creates a new csv file "raw_data.csv" if one does not exist in the program directory and in
# the case it already does exist, it overwrites it
f = open("raw_data.csv", "w+")

# Initializing a zero-filled array, which is then updated with the collected data. The size of the array
# depends on the number of antenna pairs to be used.
signal_list = [[0]]*ant
new_signal_list = [[0]]*ant
background = []
summation = []


# Initializing the figure window for plotting
plt.ion()
fig = plt.figure()


# The custom-made function to plot the data, depending on the number of antenna pairs chosen
# function for a lot of data (PROF_SENSOR PROFILE)

    # The for loop goes up to the size of 'ant', which is the number of antenna pairs, so that
    # the loop can plot data from every antenna pair used.
       # 'timeAxis' is a 1D array contining the time domain values for the obtained raw signals.
       # 'new_signal_list' is a multidimensional array (the number of dimensions is equal to antenna
       #  pairs being used). Each element of the array refers to the obtained signal values for
       #  the correspoding antenna pair. For example, if the 'number' is 3, then the backscattered
       #  amplitudes btained from teh 3rd antenna pair will be plotted.
       # 'COLORS' is used to change the line color for each antenna pair.

def makeFig():
    for number in range(ant):
       plt.plot(timeAxis[::25], new_signal_list[number][::25], '#'+COLORS[number], linewidth=0.5)


# ________________________________________________________________________________________________________
#|                                                 CALIBRATION                                            |
#| _______________________________________________________________________________________________________|
# Scans the arena 10 times and takes the average of those scans for the background signals' frame


print("Calibrating")
# Lets the user know calibration has begun

for i in range(10):
    wlbt. Trigger()

    for num in range(ant):
        targets = wlbt.GetSignal((pair[num]))
        background.append(targets[0])

background = np.asarray(background)

for i in range(ant):
    summation.append(background[i] + background[i+ant] + background[i+(ant*2)] + background[i+(ant*3)] + background[i+(ant*4)] +
                    background[i+(ant*5)] + background[i+(ant*6)] + background[i+(ant*7)] + background[i+(ant*8)] + background[i+(ant*9)])

summation = np.asarray(summation)
average_background = summation/10


print("Calibration Complete")

# ________________________________________________________________________________________________________
#|                                           RAW SIGNALS' COLLECTION                                      |
#| _______________________________________________________________________________________________________|

# Using a 'try-and-except' here to allow user to stop the data collection whenever they want
# by using Ctrl+C
try:
    j=1 # Counter variable for saving the figure

    # The infinite loop that runs until the user stops the program with keyboard interrupt.
    # This loop allows the Wlaabot to continuously scan the the arena that has been set.
    while True:

        # Walabot API function used to initiate the scan
        wlbt.Trigger()

        # The elements in the previously declared 'signal_list' are cleared. This is done so that
        # every time this loop runs, the 'signal_list' is updated with the new values and doesn't
        # carry on the previous values. Having the previous values in the list would disrupt the
        # plotting because the size of the 'signal_list' wouldn't match the 'timeAxis' in that case.
        del signal_list[0:ant]



        # The for loop goes up to the number of antenna pairs used. This loop allows the Walabot
        # to get the raw signals from each one of the selected number of antenna pairs, for every
        # scan.
            # 'GetSignal' from WalabotAPI which returns the time domain values and the returned signal
            # amplitudes. The data from this function is stored in 'targets' (2D array). The first array
            # within 'targets' has the returned signal amplitudes and thus, those values are appended to
            # 'signal_list'. The second array in 'targets' contains the time domain values and thus, is
            # assigned to the 'timeAxis'
        for num in range(ant):
            targets = wlbt.GetSignal((pair[num]))
            signal_list.append(targets[0])
            timeAxis = targets[1]


   		# background frame subtracted
        new_signal_list = signal_list-average_background

        # Loop for writing the collected data to a csv file.
        for i in range(len(new_signal_list[0])):
            for k in range(ant):
                f.write(str(new_signal_list[k][i])+',')
            f.write('\n')

        # The builtin function which updates the figure, with the plots from the previously defined
        # function
        drawnow(makeFig)

        # Saves the graphs from each scan of the Walabot (optional)
        # plt.savefig("frame"+str(j)+".png")

        print(j)

        j+=1


except KeyboardInterrupt:
    pass


wlbt.Stop()  # stops Walabot when finished scanning
wlbt.Disconnect()  # stops communication with Walabot

# ---------------------------------------------HEATMAP-------------------------------------------
# |   File: Heatmap                                                                              |
# |   Type: .py (python)                                                                         |
# |   Purpose: Reads data from 'raw_data.csv' and 'TOF.csv' to plot ellipse-based heatmaps for   |
# |   signal intensity at different locations, relative to Walabot.                              |
# ------------------------------------------------------------------------------------------------

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd



# _______________________________________________________________________________________________________
#|                                          REQUIRED PARAMETERS                                          |
#| ______________________________________________________________________________________________________|

# The user is prompted to enter the following parameters so that the program can identify which data frame
# and antenna pair to use, along with the range for the heatmap. Note that the range here is set by number
# of points, NOT by the distance from Walabot.
frameNumber =  int((input("Enter frame number: ")))
antennaPairInput = int(input("Specify antenna pair: "))
upperlimit = int(input("Enter the upper limit range (number of points): "))
lowerlimit = int(input("Enter the lower limit range (number of points): "))


# Based on user input, the starting value of range for reading rows from 'raw_data.csv' is calculated
# Since python indexing is zero-based, the user input needs to be subtracted by 1
rowStartRange = (((frameNumber - 1) * 8192) + 1)
rowEndRange = (rowStartRange) + 8191
antennaPair = (antennaPairInput - 1)

# _______________________________________________________________________________________________________
#|                                            IMPORTING DATA                                             |
#| ______________________________________________________________________________________________________|

pd.set_option('precision', 18) # precision of values read from the csv file

# 'TOF.csv' is a one-column file and doesn't require a certain range of data to be read, hence, loadtxt
# from numpy library is used to import the data as a numpy array into 'roundtrip'. User needs to set
# file path to 'TOF.csv' file
roundtrip = np.loadtxt(r'C:\Users\...\TOF.csv',dtype=float,delimiter=',',skiprows=42,usecols=(0,))


# 'raw_data.csv' is a large file (size varies depending on how much data is collected), so instead of
# importing all the data from it, only a certain column (based on user specified antenna pair) from a
# frame (also user input based) is imported into the variable 'power'. The absolute values of the signals
# is taken
io = pd.read_csv('raw_data.csv', sep=",", header=None)
power = abs(io.ix[(rowStartRange + 40):rowEndRange,antennaPair].as_matrix())


# NOTE: The first 40 values from each frame are disregarded because they correspond to a distance (~5cm)  that
# Walabot cannot detect with its long-range sensing profile.


# _______________________________________________________________________________________________________
#|                                        PLOTTING ELLIPSES' HEATMAP                                     |
#| ______________________________________________________________________________________________________|


# Based on the upper and lower range limits, the max and min of the obtained signals is determined. These
# values are used to set the max and min intensity values for the heatmap
z_min = min(power[lowerlimit:upperlimit-1])
z_max = max(power[lowerlimit:upperlimit-1])


# 'theta' is used to convert the points on an ellipse into cartesian coordinates. Only one half of the ellipse
# is considered because the field-of-interest is in front of Walabot
theta = np.linspace(0,np.pi,225)


# Initializing empty numpy arrays, which will be updated in the for loop
majoraxisradius = np.empty(upperlimit)
minoraxisradius = np.empty(upperlimit)

# for loop used to make plot every ellipse in cartesian coordinates
for i in range(lowerlimit, upperlimit,10):

	majoraxisradius[i] = (roundtrip[i])/2
	minoraxisradius[i] = (np.sqrt((roundtrip[i])**2 - (0.0735**2)))/2

	x = majoraxisradius[i] * np.cos(theta)
	# 225 points for horizontal axis, for EACH ellipse

	y = minoraxisradius[i] * np.sin(theta)
	# 225 corresponding points for vertical axis, for EACH ellipse

	z = np.full(225, power[i])
	# Setting the signal intensity value for the 'x' and 'y'

	x1 = x.reshape(15,15)
	y1 = y.reshape(15,15)
	z1 = z.reshape(15,15)

	plt.pcolor(x1,y1,z1, cmap='jet', vmin=z_min, vmax=z_max)
	# function in matplotlib for plotiing heatmaps

plt.colorbar() # adds the colorbar on the side of the heatmap
plt.show() # shows the colorbar

Credits

Fezza Haider

1 project • 5 followers

Engineering Student, University of Waterloo

George Shaker

1 project • 2 followers

Adj. Assistant Prof. @ University of Waterloo, ON, Canada

People and Fall Detection with Walabot
